• (5) LT245/75R17E all-season BSW tires
• (4) 17" argent painted steel wheels w/bright center ornaments
• Full-size spare tire w/lock & carrier
• Black painted steel front bumper w/grained mold-in-color top cover
• Black painted rear bumper
• Black lower air dam
• Front fender vents
• Black box-rail & tailgate top-edge moldings
• Black painted grille
• Sealed beam halogen headlamps
• Pickup box/cargo lights
• Manual telescoping trailer tow mirrors w/manual glass
• Solar tinted glass
• Flip-out rear quarter windows
• Interval windshield wipers
• Dual rear access doors
• Front license plate bracket
• Rear license plate bracket
• Black door handles

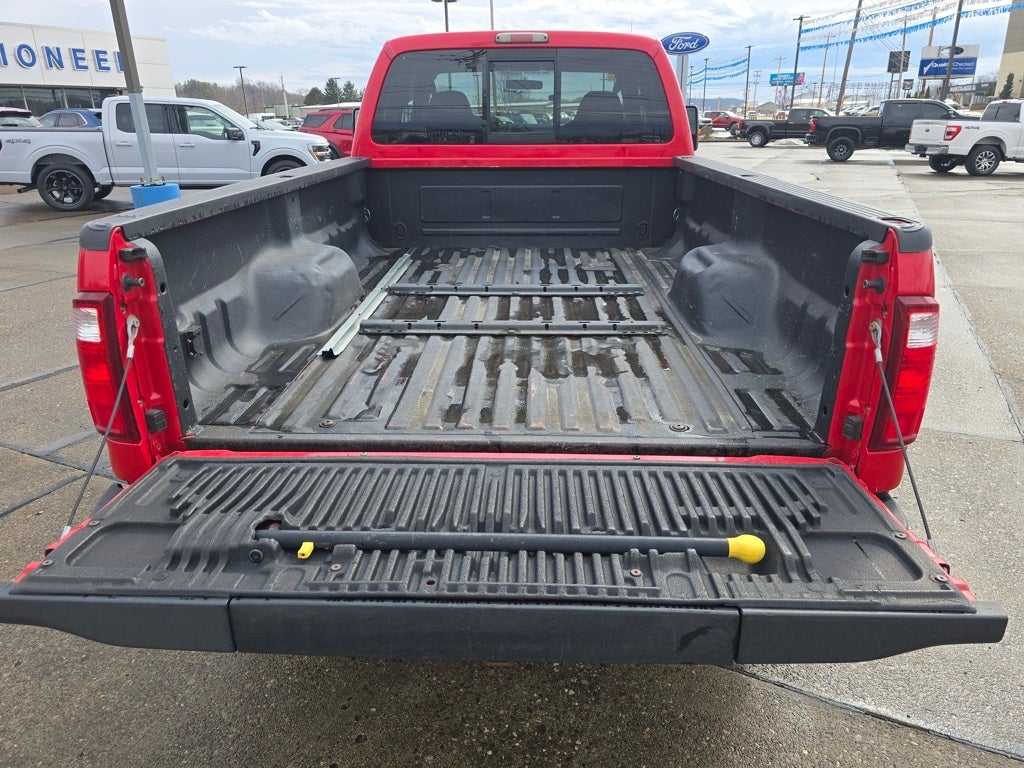

• Removable locking tailgate w/black handle & Tailgate Assist

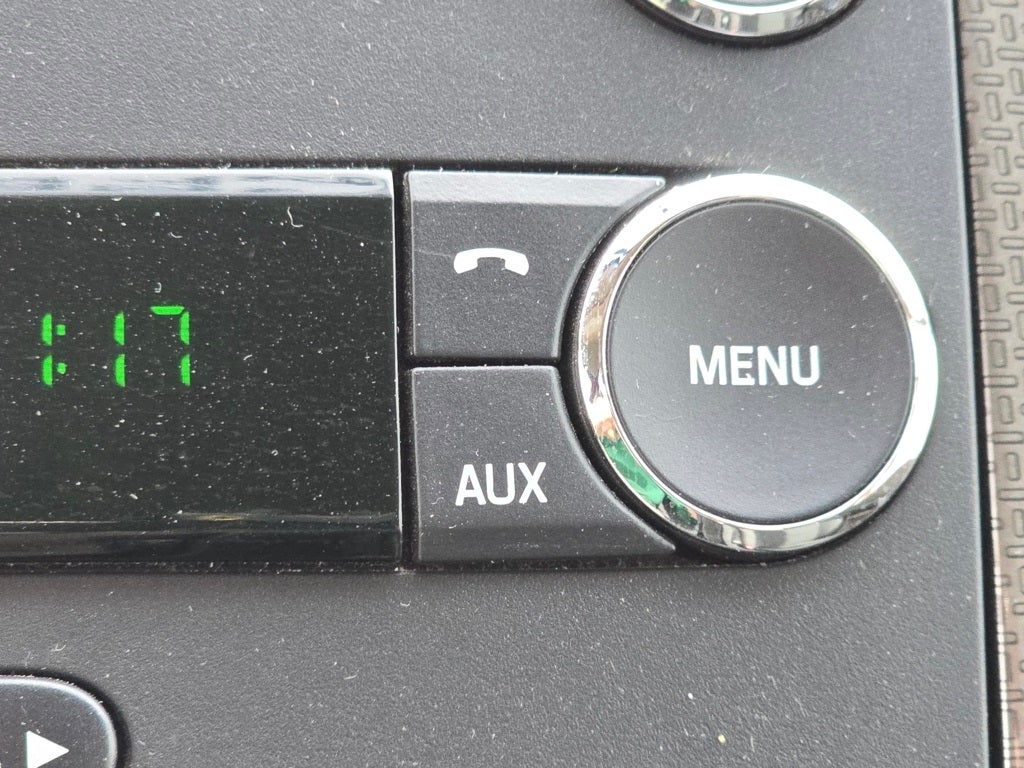

• AM/FM stereo-inc: clock, (2) speakers

• HD vinyl bench seat w/recline & integrated armrest -inc: cupholders in armrest (w/213 ESOF Transfer Case, REQ: 445 or 447 Manual Trans)

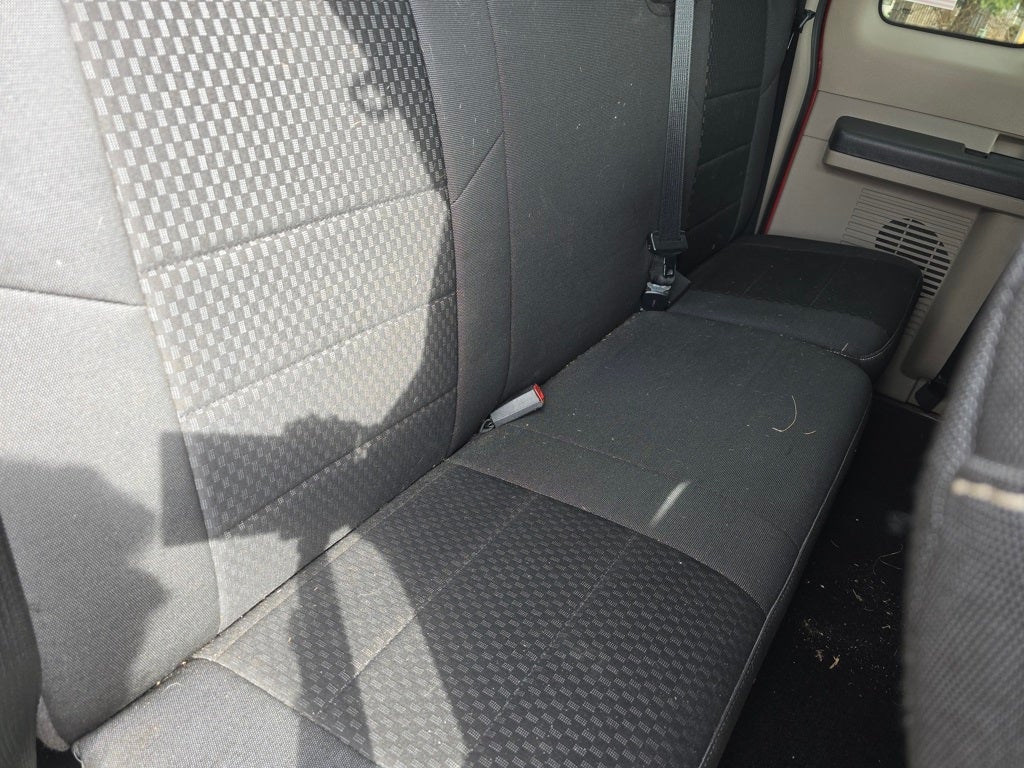

• Fold-up rear bench seat
• Black vinyl full-floor covering
• Carpet delete
• Color-keyed scuff plates
• SecuriLock anti-theft ignition

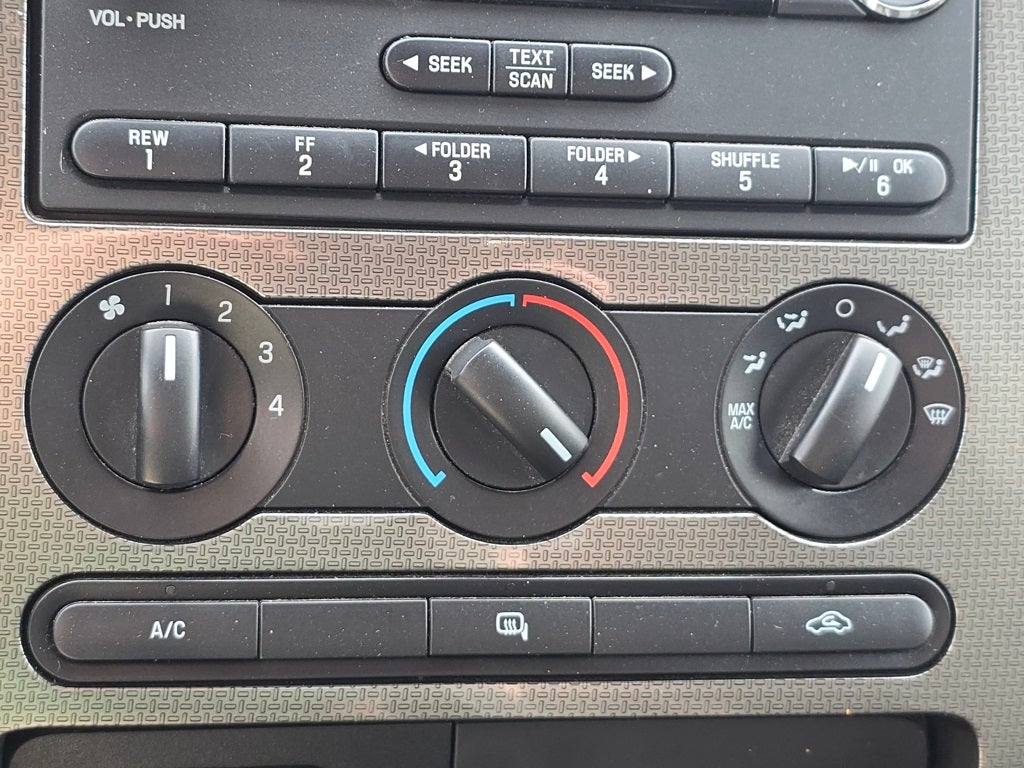

• Air conditioning
• (4) air registers w/positive shut-off
• Auxiliary pwr point
• Dash-top tray
• Glove box
• Ashtray & cigar lighter
• Instrument panel mounted storage bin & trash bag hook
• Color-keyed molded door trim panel-inc: hard armrest, grab handle, reflector
• Color-keyed cloth headliner
• Front passenger-side roof ride handle
• Driver & passenger grab handles
• Dual color-keyed cloth sunvisors-inc: driver-side pocket, passenger-side mirror insert
• Front door operated dome lamp w/time delay off & IP switch
• Map lamps
• Dual color-keyed coat hooks

• 4-wheel anti-lock braking system (ABS)

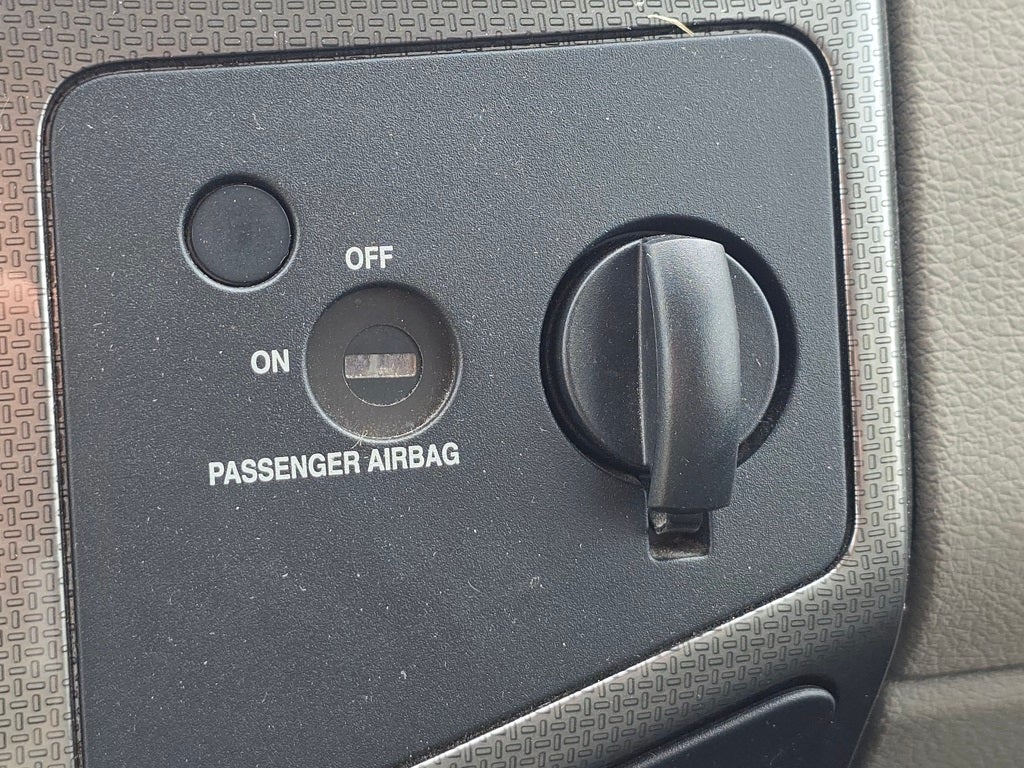

• Driver & front passenger airbags w/passenger-side deactivation switch
• SOS post crash alert system -inc: doors unlock, horn & hazard flashers are activated when air bags are deployed
• Color-keyed safety belts w/front seat outboard height adjustable D-rings
• BeltMinder seatbelt-not-buckled chime & flashing warning light
• Child seat tethers on all rear passenger seats
• Tire pressure monitoring system

6.4L OHV V8 TURBO-DIESEL POWER STROKE ENGINE

• 135-amp HD alternator
• dual 750 CCA battery
• turbo boost gauge
• air filter minder *Includes Winter Front Grille Cover in AK
• CO
• ID
• IA
• MA
• ME
• MI
• MN
• MT
• NH
• NY
• ND
• NE
• SD
• VT
• WI
• WY*

• 2 Speakers
• AM/FM radio
• AM/FM Stereo w/Digital Clock
• Air Conditioning
• Power steering
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Front anti-roll bar
• Low tire pressure warning
• Passenger cancellable airbag
• Rear step bumper
• Front reading lights
• Passenger vanity mirror
• Tachometer
• Trip computer
• Voltmeter
• Front Center Armrest
• HD Vinyl Full Bench Seat w/Recline
• Split folding rear seat
• 17" Argent Painted Steel Wheels
• Variably intermittent wipers
• 3.73 Axle Ratio

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (Primary): 650
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): HD 135
• Maximum Alternator Capacity (amps): HD 157
• Maximum Alternator Watts: 1950
• Cooling System
• Total Cooling System Capacity (qts): 30.5
• Total Cooling System Capacity (qts): 26.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 7000
• Gross Axle Wt Rating - Rear (lbs): 6262
• Curb Weight - Front (lbs): 4535
• Curb Weight - Front (lbs): 3685
• Curb Weight - Rear (lbs): 2788
• Curb Weight - Rear (lbs): 2678
• Gross Vehicle Weight Rating Cap (lbs): 10800
• Gross Vehicle Weight Rating Cap (lbs): 10200
• Gross Combined Wt Rating (lbs): 23000
• Gross Combined Wt Rating (lbs): 17000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1875
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1560
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 10300
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2575
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: 2-Stage Leaf
• Spring Capacity - Front (lbs): 4000
• Spring Capacity - Rear (lbs): 6100
• Axle Type - Front: Dana 60 Monobeam
• Axle Type - Rear: Visteon Full-Floating
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 7280
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.10
• Stabilizer Bar Diameter - Rear (in): 0.63
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.66 x 0.58
• Rear Brake Rotor Diam x Thickness (in): 13.39 x 0.47
• Tires
• Front Tire Order Code: TBK
• Rear Tire Order Code: TBK
• Spare Tire Order Code: - TBD -
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT245/75R17E
• Spare Tire Size: - TBD -
• Front Tire Capacity (lbs): 3195
• Rear Tire Capacity (lbs): 3195
• Spare Tire Capacity (lbs): 3195
• Revolutions/Mile @ 45 mph - Front: 664
• Revolutions/Mile @ 45 mph - Rear: 664
• Revolutions/Mile @ 45 mph - Spare: 664
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 47.5
• Turning Diameter - Wall to Wall (ft): 49.4
• Frame
• Frame Type: Ladder-Type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 30.5
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 141.8
• Length, Overall w/o rear bumper (in): 231.8
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 80.2
• Overhang, Front (in): 37.6
• Overhang, Rear w/o bumper (in): 52.4
• Front Bumper to Back of Cab (in): 139.9
• Cab to Axle (in): 40.0
• Cab to End of Frame (in): 80.3
• Ground to Top of Load Floor (in): 38.0
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 36.5
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.3
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 81.8
• Cargo Box Width @ Top, Rear (in): 63.6
• Cargo Box Width @ Floor (in): 60.6
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20.1
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 64.4
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): - TBD -
• Front Leg Room (in): - TBD -
• Front Shoulder Room (in): - TBD -
• Front Hip Room (in): - TBD -
• Second Head Room (in): - TBD -
• Second Leg Room (in): - TBD -
• Second Shoulder Room (in): - TBD -
• Second Hip Room (in): - TBD -
• Summary

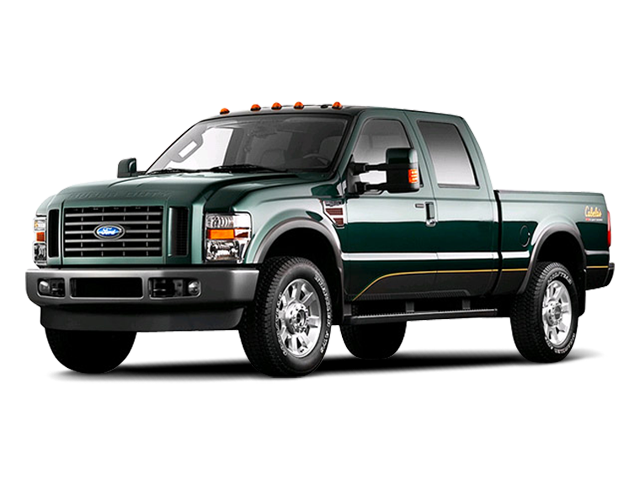

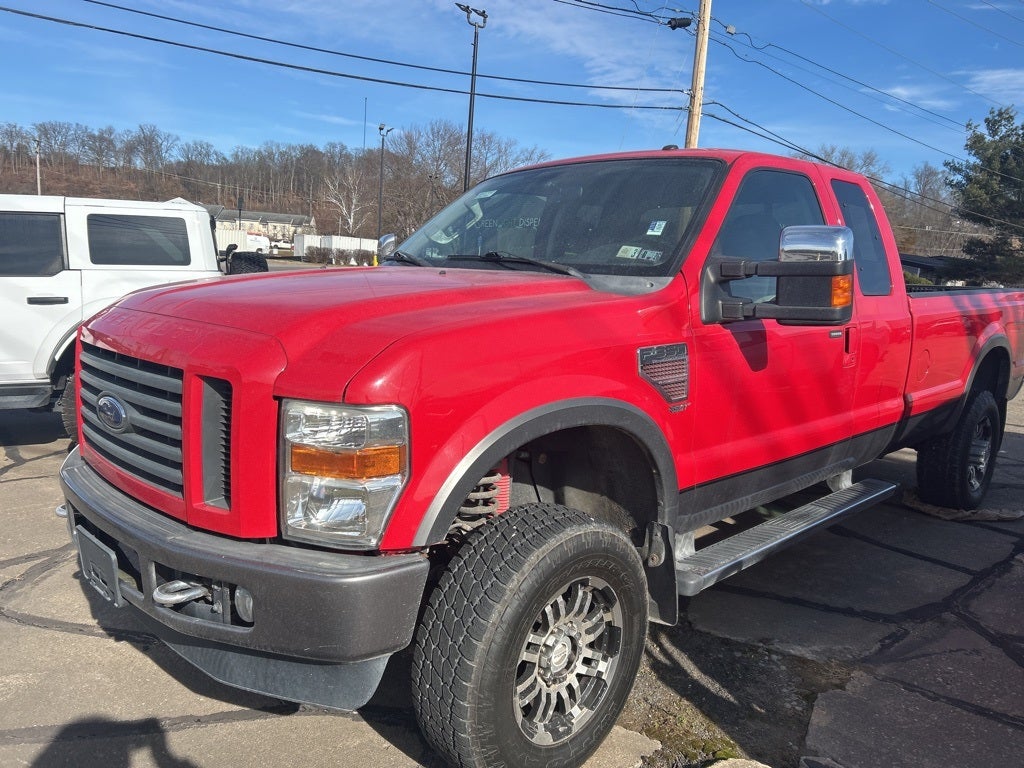

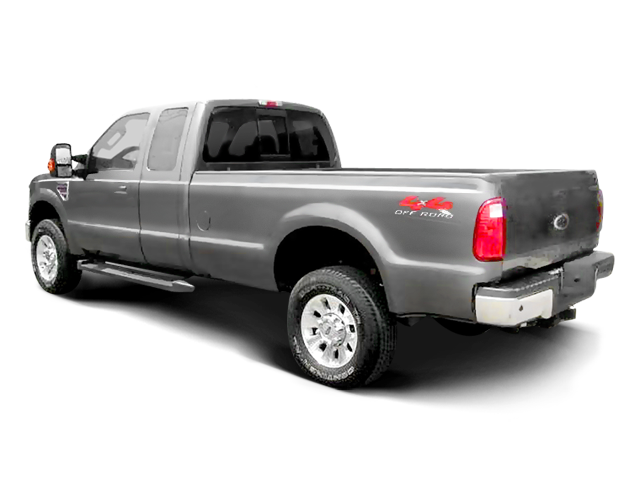

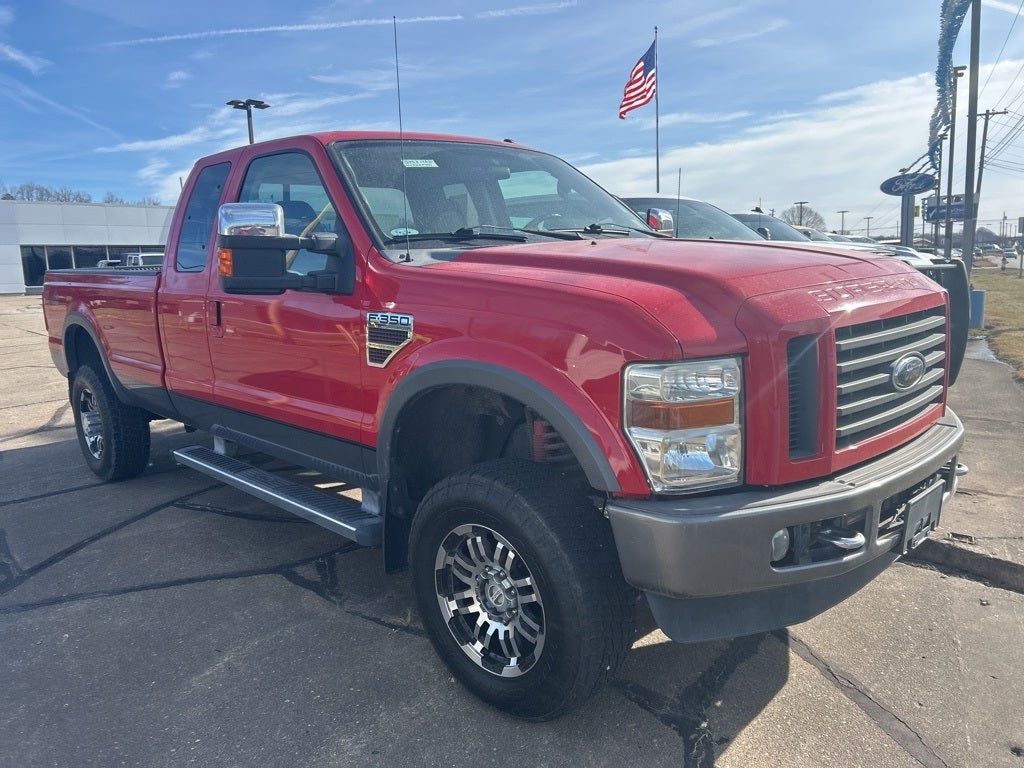

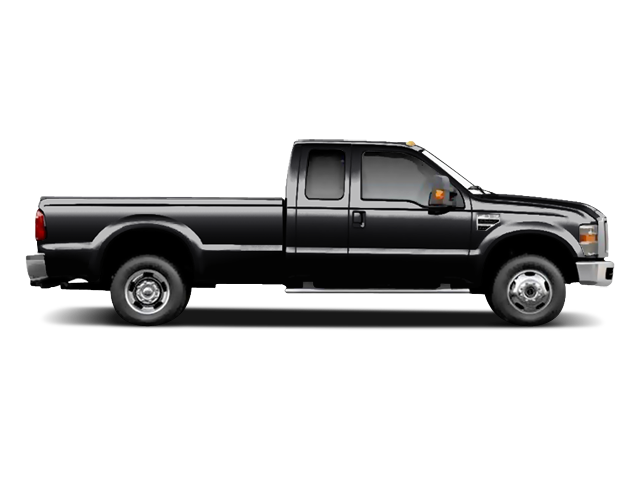

• Vehicle Name: Ford Super Duty F-350 SRW
• Body Style: Supercab 6-3/4'
• Body Code: 142" WB
